Brass Compression Male Connector – Metric Tube × BSP ThreadThe brass compression male connector is designed for connecting metric tubing to a female BSP threaded port. The compression ring creates a r
Material
Brass
Finish
Natural

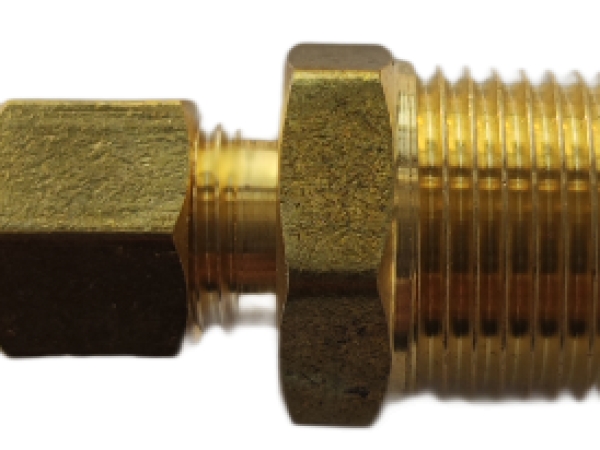

Brass Compression Male Connector – Metric Tube × BSP Thread
The brass compression male connector is designed for connecting metric tubing to a female BSP threaded port. The compression ring creates a reliable, leak-tight seal, allowing quick and secure installation without soldering or flaring.
Made from high-quality brass, the fitting offers excellent corrosion resistance and durability for long-term performance.
Compression male connectors are commonly used in pneumatic systems, lubrication lines, cooling systems, and general fluid transfer applications.
| Connection Type | Compression |
| Fitting Shape | Straight Fittings |
| Material | Brass |
| Finish | Natural |
| Working Pressure | The working pressure varies depending on the size |
| Temp Range | -40°F to +250°F (-40°C to +121°C) |
| Media | Air, Water, |
| Tube Type | Copper, Aluminum,Thermoplastic tubing |
