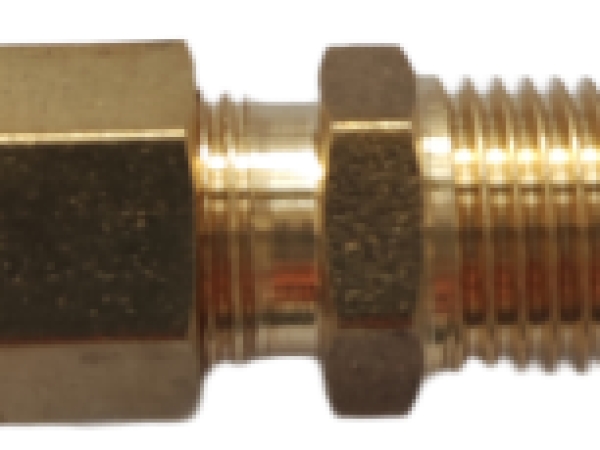

Brass compression fittings with BSP threaded connections designed for use with imperial tubing sizes. These fittings provide a secure and leak-tight connection without soldering or flaring.They are wi
Material
Brass
Finish
Natural
Brass compression fittings with BSP threaded connections designed for use with imperial tubing sizes. These fittings provide a secure and leak-tight connection without soldering or flaring.
They are widely used in plumbing, pneumatic systems, instrumentation, and general fluid transfer applications. The series includes male connectors, female connectors, elbows, tees, and unions for various installation needs.
| Connection Type | Compression |
| Fitting Shape | Straight Fittings |
| Material | Brass |
| Finish | Natural |
| Working Pressure | The working pressure varies depending on the size |
| Temp Range | -65°F to 250°F (-54°C to 121°C) |
| Media | Air, Water, |
| Tube Type | Copper, Aluminum,Thermoplastic tubing |
