Markets & Applications
Markets:
Industrial Equipment, Pneumatic Systems, Hydraulic & Fluid Systems, Automotive, Packaging Machinery
Applications:
Air lines, lubrication lines, cooling systems, fuel and oil lines, general fluid transfer
Compliance
RoHS: Compliant under Exemption 6(c)
REACH: Contains Lead (CAS 7439-92-1) above 0.1% w/w (SVHC declared)
California Prop 65: Warning label applied as required
Assembly Instructions
Assembly Instructions

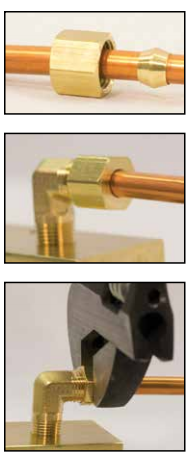

1. Slide nut then sleeve onto tubing. The thread end of the
nut must face out.
2. Insert tube and bottom on the fitting shoulder

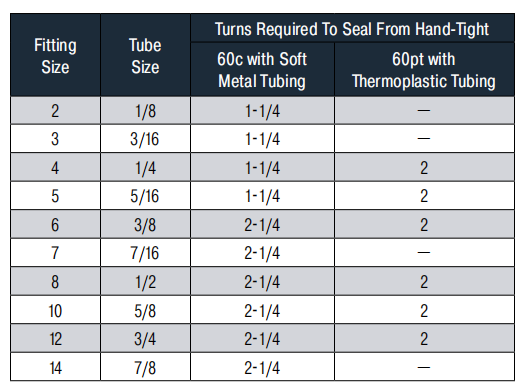

3. Assemble nut to body and tighten “hand tight”. Then
wrench tighten the number of turns indicated in the table.

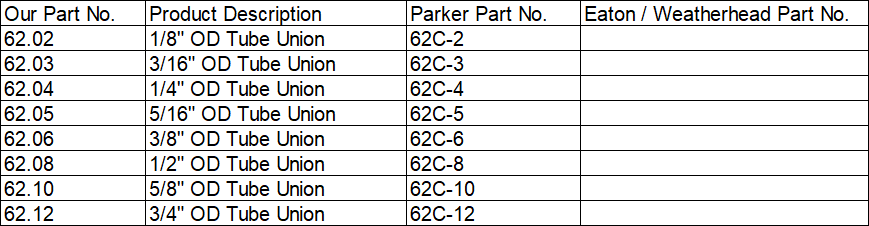

Part Numbers & Cross Reference
The part numbers listed are for reference only. Parker and Eaton are registered trademarks of their respective owners.
