Wuxi Extra Miles Technology
Hose Barb Fittings NPT

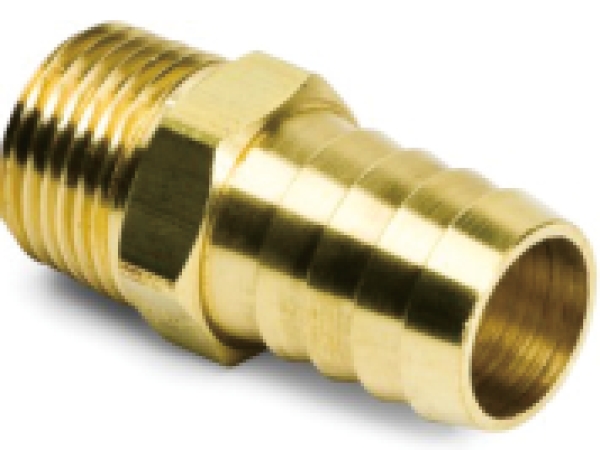

Hose Barb to Male Pipe

Enhanced Grip: The multi-barbed design ensures a deep, secure bite into the hose, preventing blow-outs and leaks even under pressure (Hose clamps are recommended for most applications).Superior Materi

Material

Brass

Finish

Natural

Technical Overview

  • Enhanced Grip: The multi-barbed design ensures a deep, secure bite into the hose, preventing blow-outs and leaks even under pressure (Hose clamps are recommended for most applications).
  • Superior Material: Constructed from high-grade brass (CA360/CW614N) for excellent durability and resistance to corrosion and rust.
  • Precision Threading: Available with standard Male Pipe Threads (NPT/BSPT), ensuring a tight and consistent fit with existing female ports.
  • Versatile Compatibility: Perfect for use with rubber, plastic, or thermoplastic hoses in air, water, fuel, and oil lines.
Connection Type Hose Barb
Fitting Shape Straight Fittings
Material Brass
Finish Natural
Working Pressure Up to 150 PSI (10.3 bar)
Temp Range -40°F to +160°F (-40°C to +71°C)
Media Air, Water,
Tube Type Rubber Hose ,GPH Hose
