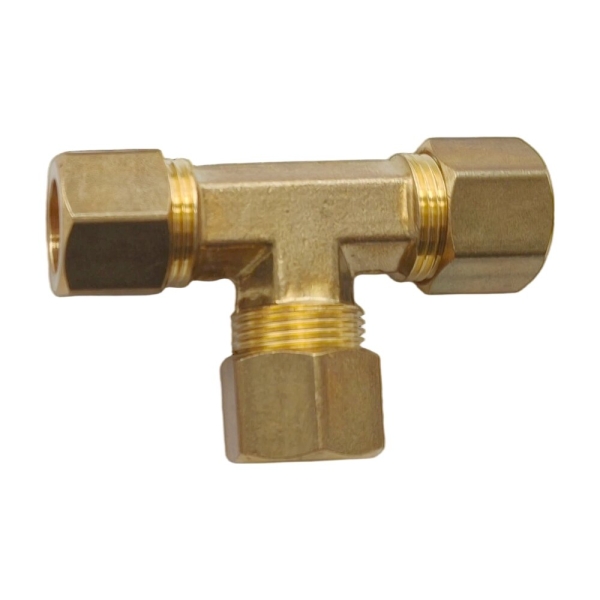

Connecting three compression tubes of identical sizes. Leak-proof 3-way plumbing connectors.
Material
Brass
Finish
Natural
Product Overview
Our internal compression fittings are highly versatile and widely used in the pneumatics industry. Designed for high-vibration environments, the internal compression nut provides extra tube support to ensure a secure, leak-free connection. No specialized tools are required for installation.
Key Features
•High Vibration Resistance: Extra tube support prevents loosening in heavy-duty applications.
•Easy Installation: Requires minimal tube preparation and no special tools.
•Complete Assembly: Includes compression nut, universal sleeve, and brass body.
•Thread Type: Pipe Thread BSP - Tapered Male (R series) and Parallel Female (Rp Series).
Technical Specifications
•Working Pressure: 0 to 3500 kPa (0-500 PSI), depending on tube size and media.
•Material: Premium Brass.
Media and Applications
•Suitable for: Compressed air lines, non-drinking water, fuel lines, oil lines, and lubrication lines.
•Not suitable for: Gas.
Compatible Tubing
•Approved tubes: Nylon, Poly tube, Copper (Annealed and hard drawn), Aluminium, and Brass.
•Not suitable for: Steel bundy and Stainless steel.
| Connection Type | Compression |
| Fitting Shape | Tees & Crosses |
| Material | Brass |
| Finish | Natural |
| Working Pressure | 0–500 PSI (0–3500 kPa) depending upon tube size and media |
| Temp Range | Depends on the material of the tubing being used. |
| Media | Air, Water, Oil, Others |
| Compatible Tubing | Copper and Nylon tube |
