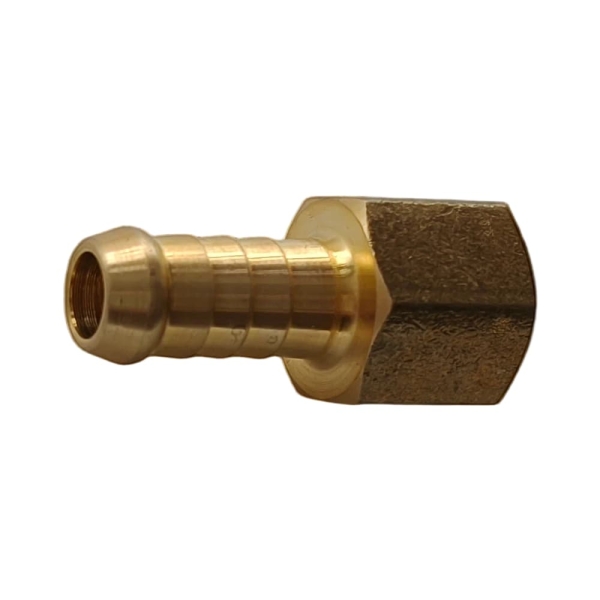

This P10 female hosetail features a precision npt female thread barb fitting design, acting as a reliable brass tail piece for secure hose-to-pipe connections.
Material
Brass
Finish
Natural
Barbed Airline Fittings are engineered for direct insertion into a hose bore. Secure installation requires an external clamping device, such as a hose clip or 'O' clip, to ensure a firm, leak-free seal. Notably, the end bulb features a larger diameter than the sequence of barbs, significantly boosting retention and enhancing the overall sealing performance.
| Connection Type | Hose Barb |
| Fitting Shape | Straight Fittings |
| Material | Brass |
| Finish | Natural |
| Working Pressure | 1000 kPa (145 PSI) |
| Media | Air, Water |
| Compatible Tubing | Rubber Hose |
