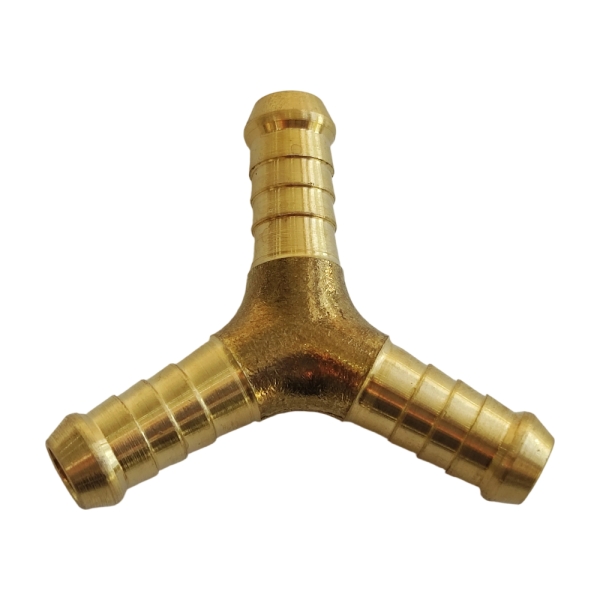

P75 Brass Hose Barb Y-Piece_Barbed Brass Fittings BSP_Barbed Fittings_Products

Technical Overview

Barbed Airline Fittings are engineered for direct insertion into a hose bore. Secure installation requires an external clamping device, such as a hose clip or 'O' clip, to ensure a firm, leak-free seal. Notably, the end bulb features a larger diameter than the sequence of barbs, significantly boosting retention and enhancing the overall sealing performance.

Connection Type	Hose Barb
Fitting Shape	Tees & Crosses
Material	Brass
Finish	Natural
Working Pressure	1000 kPa (145 PSI)
Media	Air, Water
Compatible Tubing	Rubber Hose

Markets & Applications

Plumbing

Compliance

🟢 RoHS Compliance:

Fully compliant under EU Directive 2011/65/EU and its amendment (EU) 2015/863, utilizing Exemption 6(c) for copper alloys containing up to 4% lead by weight.

🟢 REACH Regulation (EC) No 1907/2006:

Contains Lead (CAS 7439-92-1), an SVHC substance under the REACH Candidate List, above 0.1% w/w. Information obligations under Article 33 have been fully fulfilled.

⚠️ California Proposition 65: WARNING:

This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

Dimensions & Drawings

Assembly Instructions

1. Tighten the fitting to until it is wrench-tight. (Caution: Do not overtighten.)

2. Ensure the barb is fully inserted into the hose.

Part Numbers & Cross Reference

Part Number	Hose ID	Cross Reference
183641.04	1/4"	07P75-04
183641.06	3/8"	07P75-06
